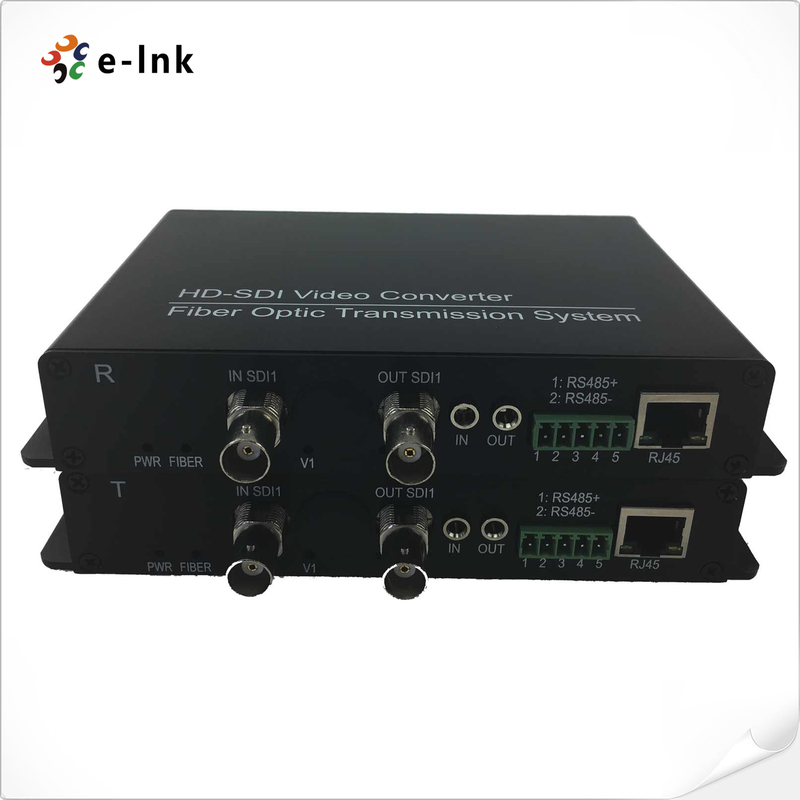

SD/HD/3G-SDI + RS485/RS422/RS232 Data + 10/100M Ethernet over Fiber Converter
3G-SDI Fiber Optic Extender Overview
E-Link's SDI/HD/3G Video Digital Optical Converter uses all-digital gigabit fibre technology
to transmit uncompressed and unencrypted SDI signals (with the option of embedded audio
and timecode) over long distances via single-mode fibre. Ideal for broadcasting, surveillance
and industrial monitoring, it ensures zero distortion and ultra HD quality with stable performance
and LED status indicators for real-time monitoring. Supporting RS485 control, the converter offers
flexible integration with traffic systems, military security, live broadcasting and stadium AV.
Key features include high stability, plug-and-play operation and rugged, industrial-grade reliability.
3G-SDI Fiber Optic Extender Features
-
Supports wavelength ranges of 1310 nm, 1550 nm, and 16 CWDM wavelengths
-
compliant with ITU-T G.694.2
-
Automatic cable equalization for all data rates below 3.2 Gb/s (Belden 1694A)
-
LED status indicators for real-time monitoring of operating conditions
-
Supports video regeneration to maintain high signal quality
-
Hot-pluggable SFP transceiver support for flexible deployment
-
Maximum operating rate up to 3.2 Gb/s
-
SMPTE 292M (2.97 Gb/s) compliant clock recovery
-
Plug-and-play design for transmitting SD-SDI, HD-SDI, and 3G-SDI digital video
-
interfaces over a single fiber
-
Compatible SDI video formats:
-
625/25 PAL
-
525/29.97 NTSC
-
525/23.98 NTSC
-
720p50, 720p59.94
-
1080p 23.98/24/30/50/60
-
1080i 23/24/30/50/59.94
3G-SDI Fiber Optic Extender Technical Indexes
|
Fiber Optical interface:
|
|
|
Fiber interface
|
simplex LC
|
|
Transmission distance
|
550m-120Km( depend on SFP transceiver)
|
|
Wavelength
|
1310 nm /1550nm(depend on SFP transceiver)
|
|
Video
|
|
|
Video interface
|
BNC
|
|
Video input/output impedance
|
75Ω
|
|
Video input/output voltage
|
Typical:1Vpp,Min 0.5Vpp, Max 1.5Vpp
|
|
Video Bits Rate
|
Max 3.2Gb/s
|
|
Differential gain (10%～90% APL)
|
<1%
|
|
Video SDI standard
|
270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI)
SMPTE425M3Gb/s Mapping(3G-SDI)
SMPTE424M 3Gb/s serial interface(3G-SDI)
|
|
Data
|
|
|
Physical interface
|
Industrial standard screw terminal
|
|
Data type
|
RS485/RS422/RS232/Manchester
|
|
Frequency/Rate support
|
0~400K bps
|
|
Ethernet
|
|
|
Port
|
10/100 Base-T, RJ-45 connector
|
|
Work mode
|
Full duplex/half duplex
|
|
Data Rate
|
10 Mbps & 100 Mbps Ethernet (Auto Adaptive)
|
|
Power Supply
|
|
|
Power adaptor
|
AC 100-240V to DC 5V 2A
|
|
Power consumption
|
<3W
|
|
Dimension Size
|
166*28*105MM
|
|
Shipping weight
|
1.1KG/pair
|
|
(include external power adaptors & package box)
|
|
Environmental
|
|
|
Working Temperature
|
-40℃～ +80℃
|
|
Storage Temperature
|
-40℃～ +85℃
|
|
Working Humidity
|
0~95%
|
|
MTBF
|
≥100000 hours
|
3G/HD/SD-SDI Fiber Optic Extender Application
