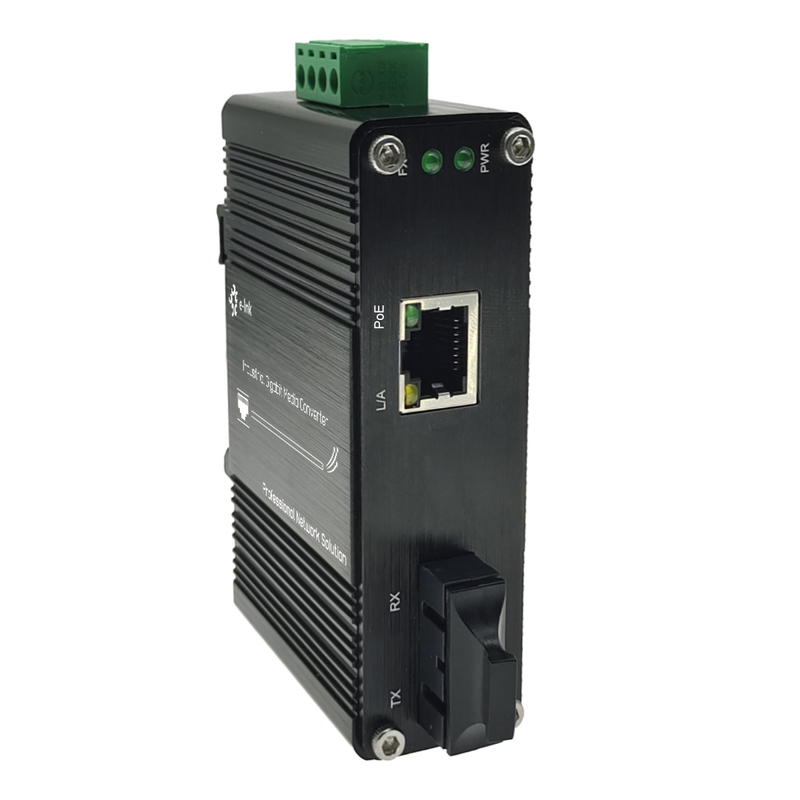

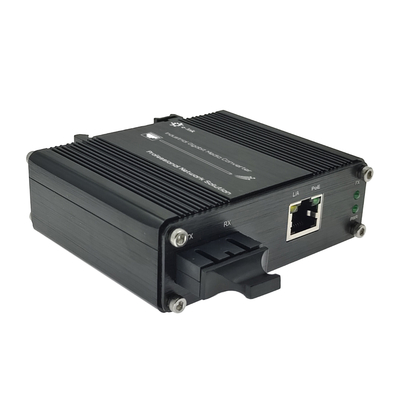

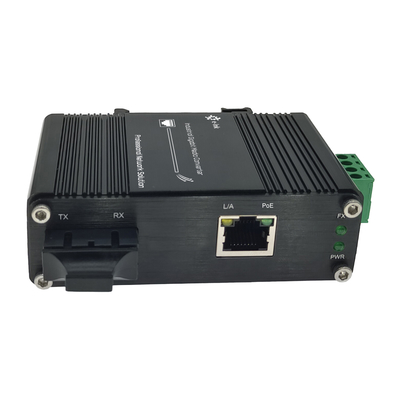

Mini Industrial 100/1000BASE-X to 10/100/1000BASE-T 30W PoE+ Media Converter
Mini Industrial Gigabit Media Converter Overview
The LNK-IMC3012P Series is an industrial-grade Gigabit media converter that bridges
10/100/1000BASE-T copper Ethernet and 1000BASE-X fiber optic networks. The device features
IEEE 802.3at PoE+ support (30W output) and is able to deliver both data and power over
a single cable to connected devices such as IP cameras, wireless APs and industrial sensors.
Engineered to withstand challenging conditions, its robust aluminium housing and operating range
of -40°C to 75°C guarantee reliable performance in industrial automation, smart transportation,
and outdoor surveillance. This product is an ideal solution for extending high-speed networks
in demanding conditions. It features DIN-rail or wall-mount installation, auto-negotiation (half/full duplex),
and a fanless design.
Mini Industrial Gigabit Media Converter Features
►1 × 10/100/1000BASE-T RJ45 port , supporting automatic MDI/MDI-X switching
►1×SC optical port , supports 100Base-FX or 1000Base-X dual-mode automatic detection
►Supports IEEE 802.3af PoE (15.4W) and IEEE 802.3at PoE+ (30W)**
►Full/half duplex self-adaptation and support for automatic negotiation to ensure network stability
►Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE) standard to reduce power consumption
►12~48VDC terminal power input , suitable for various industrial power supply environments
►Supports DIN rail and wall mounting for flexible deployment
►Industrial grade wide temperature design -40°C to 75°C, suitable for harsh environments
Mini Industrial Gigabit Media Converter Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3ab 1000Base-T
|
|
IEEE802.3z 1000Base-X
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
1 Mbit
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size
|
2048K MAC Addresses
|
|
Interface
|
|
Connector:
|
1x RJ45
|
|
Optical Port:
|
1 x 1000Base-X SC
|
|
Electrical and Mechanical
|
|
Input Power:
|

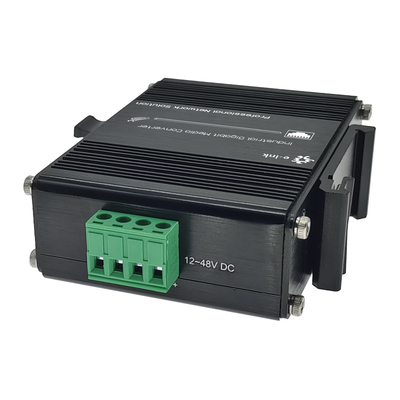

12~48VDC, 2-pin terminal block
|
|
Output Power
|
48VDC
|
|
Power Consumption:
|
36W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
L/A:
|
Data LINK Status
|
|
POE:
|
PoE Status
|
|
100M/1000M:
|
Fiber LINK Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial Media Converter Ordering Information
|
Model
|
Description
|
|
LNK-IMC3012P
|
Mini Industrial 30W PoE Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m
|
|
LNK-IMC3012P-2
|
Mini Industrial 30W PoE Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km
|
|
LNK-IMC3012P-20
|
Mini Industrial 30W PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
|
|
LNK-IMC3012PS-20
|
Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
