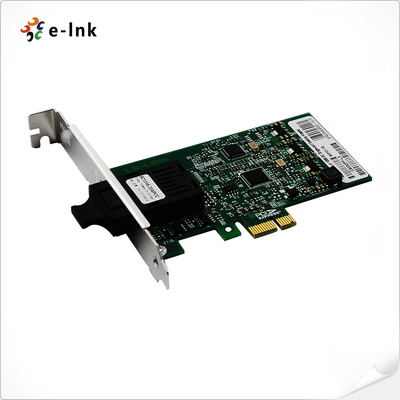

LNK-C9030PF LX 100Mbps Fiber NIC PCIe Card for Secure FTTD and FTTH Solutions

Fast Ethernet Fiber PCI-Express Network Adapters (Intel 82574 Based)

 PCI-Express Network Adapters Overview

The LNK-C9030PF-LX is a reliable 100 Mbps PCIe fiber optic network card designed for secure

and stable fiber-to-the-desktop (FTTD) and fiber-to-the-home (FTTH) networks. It overcomes

the 100-meter distance limitation of traditional copper cabling, such as Cat5e, and provides a robust

optical link that is ideal for extending network access to remote points of presence (PoPs).

With a standard 1x9 optical transceiver slot, the card offers exceptional flexibility. Users can select

and install the specific SFP optical module that best suits their needs, choosing between single-mode

or multi-mode fiber, various connector types (SC, LC, etc.), and different transmission distances.

This design provides a superior, integrated alternative to external media converters, delivering more

secure, reliable, and streamlined connectivity for demanding environments.

PCI-Express Network Adapters Features

• PCIe x1 interface, fully compliant with PCI-Express standards

• Supports 100Mbps Fast Ethernet, full-duplex (200Mbps aggregate) or half-duplex modes

• IEEE 802.3x flow control and IEEE 802.1x traffic control

• IEEE 802.1p-based traffic prioritization and priority queue support for QoS

• IEEE 802.1Q VLAN tagging for network segmentation

• PXE 2.1 remote boot support for easy deployment

• Plug-and-play installation for quick setup

• Available with LC, SC, or ST fiber connectors

• Unicast, broadcast, and multicast address filtering for efficient traffic handling

• IP multicast packet filtering to reduce host CPU utilization

PCI-Express Network Adapters Technical Indexes
