Industrial 8-Port 10/100/1000T 802.3bt PoE + 2-Port 100/1000BASE-X Ethernet Switch
Industrial Ethernet Switch Overview

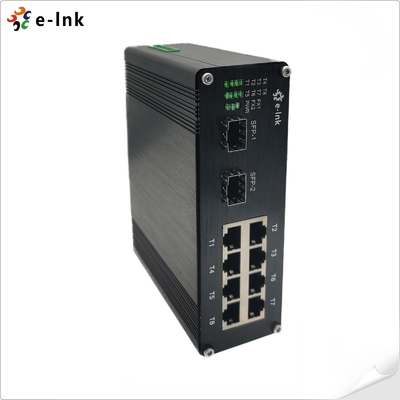

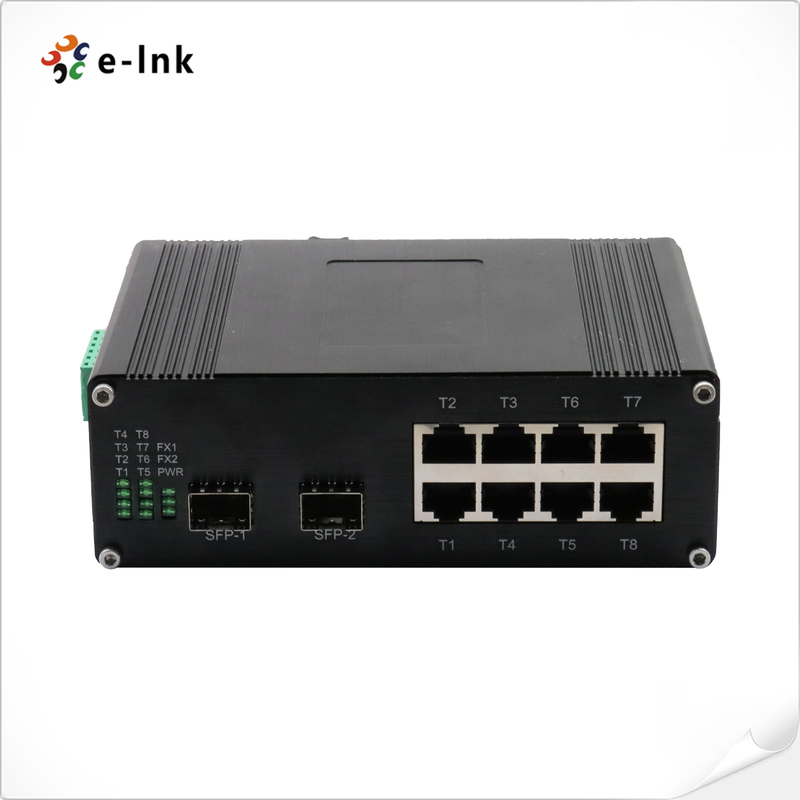

The LNK-IMC208GP60 Series is an industrial-grade, hardened PoE++ switch designed for operation
in extreme environments. It features 8x 10/100/1000Base-TX RJ45 ports with high-power PoE++
(IEEE 802.3bt) support, delivering up to 60 W per port. It also has 2x 100/1000Base-FX fibre optic ports
that are compatible with both single-mode and multi-mode fibre. This robust switch enables
the simultaneous delivery of high power and data transmission to connected devices, such as
PTZ cameras, wireless access points and VoIP systems, via standard Ethernet cables. Its robust design
ensures reliable operation in industrial temperatures ranging from -40°C to 75°C, and it can be mounted
on a DIN rail. This makes it ideal for surveillance systems, smart city deployments and remote network
applications, where high-power connectivity and reliability are critical.
Industrial Ethernet Switch Features
►Provides 8 × 10/100/1000Base-TX RJ45 ports and 2 × 100/1000Base-FX fiber ports for versatile connectivity.
►RJ45 ports support 10/100/1000Mbps full/half-duplex, auto-negotiation, and Auto MDI/MDIX.
►Complies with IEEE 802.3bt PoE, delivering up to 60W per port, with a total PoE power budget of 360W,
ideal for high-power devices such as PTZ cameras, wireless APs, and VoIP phones.
►Compatible with multiple fiber options: SFP, SC, FC, and ST (optional).
►Supports IEEE 802.3x flow control and IEEE 802.3az Energy Efficient Ethernet (EEE)
for stable and energy-efficient operation.
►Built-in redundant power inputs ensure reliable and continuous performance.
►Industrial-grade design with DIN-rail installation support and a wide operating temperature
range of -40°C to 80°C (-40°F to 176°F) for harsh environments.
Industrial Ethernet Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10BASE-T
|
|
IEEE802.3u 100BASE-TX/FX
|
|
IEEE802.3ab 1000BASE-T
|
|
IEEE802.3z 1000BASE-X
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
2.75M bits
|
|
Processing Type:
|
Store-and-Forward
|
|
Max Packet Length:
|
9K Bytes Jumbo Frame
|
|
Address Table Size:
|
4K MAC Addresses
|
|
Interface
|
|
Connector:
|
8 x RJ45
|
|
Optical Port:
|
2 x 100/1000Base-FX (SFP, SC, FC, ST Optional)
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
48~57VDC, Redundant Power (6-pin Terminal Block)
|
|
Power Consumption:
|
360W Max. (PoE in use)
|
|
5W Max. (PoE not in use)
|
|
Standard:
|
IEEE802.3af/at/bt
|
|
PoE:
|
|
Port:
|
RJ45 Port 1 ~ Port 8
|
|
Max. Power per Port:
|
60W Max per port
|
|
Power Pin Assignment
|
1/2(+), 3/6(-) or 4/5(+), 7/8(-)
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
LED Indicators:
|
|
Power:
|
Power1, Power2 Status
|
|
PoE:
|
Per Port Status
|
|
Ethernet(Per Port):
|
Link/Activity
|
|
Fiber:
|
FX1, FX2
|
|
Dimensions (WxDxH):
|
150 x 115 x 50 mm
|
|
Weight:
|
0.6Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Industrial Ethernet Switch Ordering Information
|
Model
|
Description
|
|
LNK-IMC208GP60
|
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m
|
|
LNK-IMC208GP60-20
|
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM
|
|
LNK-IMC208GPS60-20
|
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM
|
|
LNK-IMC208GPF60-20
|
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM
|
|
LNK-IMC208GP60-SFP
|
Industrial 8-port 10/100/1000BASE-T (8-port PoE++) + 2-port 100/1000BASE SFP Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed
|
|
Power Options
|
► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|
